Construction
- Frame and core: High quality extruded aluminium profile with 33 mm flange width.
- Damper frame and core: High quality extruded aluminium profile with natural aluminium finish. Black matt finish as option.
- Optional diffuser frame: Stamped aluminium core.
Description
- The frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
- Diffusers are coned type with each cone manufactured by extruded aluminium louvered profiles or one piece die formed aluminium construction arranged in concentric cones to deflect air equally in four directions.
- Louvered type core is fixed to the frame with aluminium pins loaded with steel springs. Core can be easily removable and interchangeable to allow for maximum flexibility in installation, maintenance and damper adjustment.
- Damper is fixed rigidly to the frame by aluminium rivets. Fixing by spring clips as option.
- Damper blades are seperated from its frame by nylon bushes.
- Opposed blade damper is screw operated from the face opening of the diffuser after removing the internal core. Lever operated damper as option.
- Discharge air equally in four horizontal directions.
- Foam gasket is sealed around the back of the frame as option to avoid air leakage.
- Available in rectangular sizes as option.
- Suitable for flush mounting in lay in type ceiling.
Standard Finishes
- Natural anodized aluminium finish.
- Powder coated color finish as per RAL color codes.
- Flexibility of finishing available as option.
Model ACD4
Same as ACD4+D, but without opposed blade damper. Suitable for return air applications.
Core Pattern

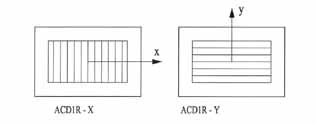

| Air pattern | Square | Rectangular |
| One Way |  |
 |

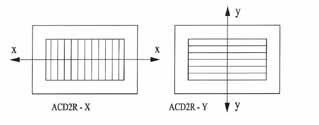

| Two Way |  |
 |

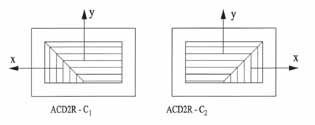

| Two Way Corner |  |
 |
| Three Way |  |
 |

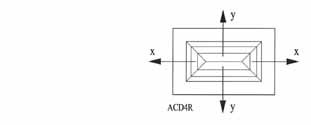

| Four Way |  |
 |
Standard Sizes
| Width in mm | Height in mm |
| 150 | 150 |
| 225 | 225 |
| 300 | 300 |
| 375 | 375 |
| 450 | 450 |
| 525 | 525 |
| 600 | 600 |
- Available in square and rectangular sizes.
- Any combination of W x D.

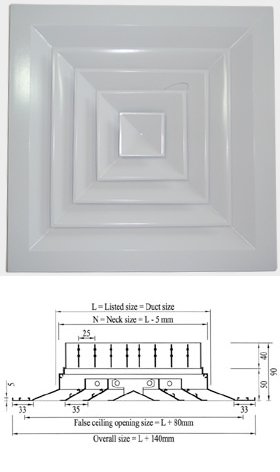

False Ceiling Sizes
| Duct size in mm x mm | False ceiling opening size |
| 150 x 150 | 230 x 230 |
| 225 x 225 | 305 x 305 |
| 300 x 300 | 380 x 380 |
| 375 x 375 | 455 x 455 |
| 450 x 450 | 530 x 530 |
| 525 x 525 | 605 x 605 |
| 600 x 600 | 680 x 680 |

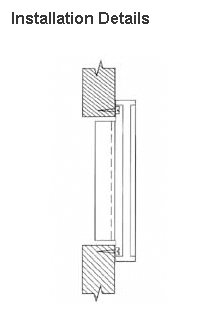

Installation Details
Concealed screw fixing from neck of the diffuser to the duct, after removing the inner core.
How to Order
Ordering Example:
| Model | Accessories | Size | Quantity | Finish |
| ACD1 | D = Damper | Specify duct opeing size in mm x mm | Specify the quantity in numbers | A = Anodized aluminium finish |
| ACD2 | ||||
| ACD3 | F = Filter | B = RAL 9010 | ||
| ACD4 | E = Equalizing grid | C = Other RAL colors | ||
| ACD2C |
Selection example:
To select supply air square ceiling diffuser, four way throw, size 450 x 450, quantity 60 nos with powder coated color finish (RAL 9010).
Order as: ACD4 + D - 450 x 450 - 60 - B.
