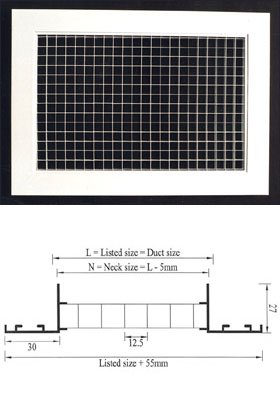

Egg Crate Grills

Construction

Egg Crate Grills
  • Frame: High quality extruded aluminium profile with 30 mm flange width as standard. 12,16,24 mm flange widths are optional.
  • Egg Crate Core: 12.5 mm x 12.5 mm x 12.5 mm aluminium grid.

Description

  • Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
  • Aluminium egg crate core of 12.5 mm x 12.5 mm x 12.5 mm size is fixed rigidly to the frame.
  • Foam gasket is sealed around the back of the frame as option to avoid air leakage.
  • Rigid construction provides noiseless performance.
  • Designed for return and exhaust applications for conditioned space.

Standard Finishes

  • Natural anodized aluminium finish.
  • Powder coated color finish as per RAL color codes.
  • Flexibility of finishing available as option.

Standard Sizes

  • Available in square and rectangular sizes.
  • Non standard sizes are available as option.
Width in mm Height in mm
150 150
225 225
300 300
375 375
450 450
525 525
600 600

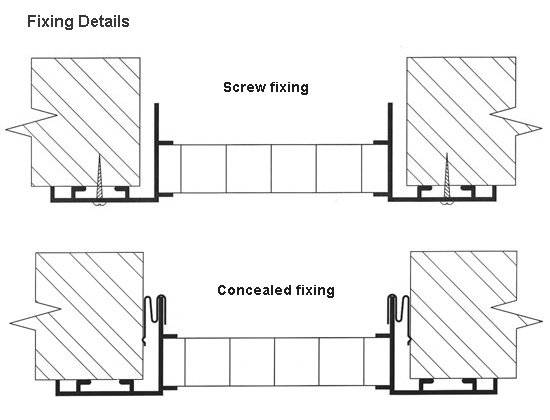

Fixing Details

How to Order

Ordering Example:

Model Size Quantity Finish
AEG Specify opening size in
Width x height
mm x mm		 Specify in numbers A =  Aluminium
AER
B = RAL 9010
C = Other RAL colors

To select egg crate register of size 450 x 450 mm of quantity 75 nos with aluminium anodized finish.

Order as: AER - 450 x 450 - 75 - A.
