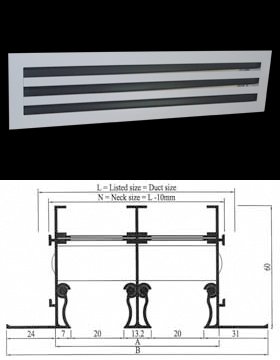

Continuous Slot Diffuser - CSF

Construction

Continuous Slot Diffuser - CSF
  • Frame & Blades: High quality extruded aluminium profiles.
  • Damper: Hit and miss damper.
  • Slot width: 20 mm as standard. 16 mm, 25 mm and non standard sizes available as option.
  • Number of slots available: 1, 2, 3, 4, 5, 6, 7, 8
  • Length: Up to 5.8 mt available in a single piece.
  • Optional accessories: Plenum box either unlined, internally insulated or externally insulated.

Description

  • Frame and deflection blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
  • Air distribution can be changed vertically or horizontally by means of deflection blades without changing the air flow rate. These blades can be fully adjusted from face opening.
  • Air flow rate can be adjusted by fixing hit and miss damper at the rear side of the diffuser. Damper blades are adjusted from the face opening.
  • Dampers are designed in a unique way that it can be used as an equalizing grid.
  • Positive alignment of adjacent sections can be made by using alignment strips.
  • Foam gasket is sealed around the back of the frame as option to avoid air leakage.
  • Suitable for installation for ceiling and sills.

Standard Finishes

  • Natural anodized aluminium finish.
  • Powder coated color finish as per RAL color codes.
  • Flexibility of finishing available.
